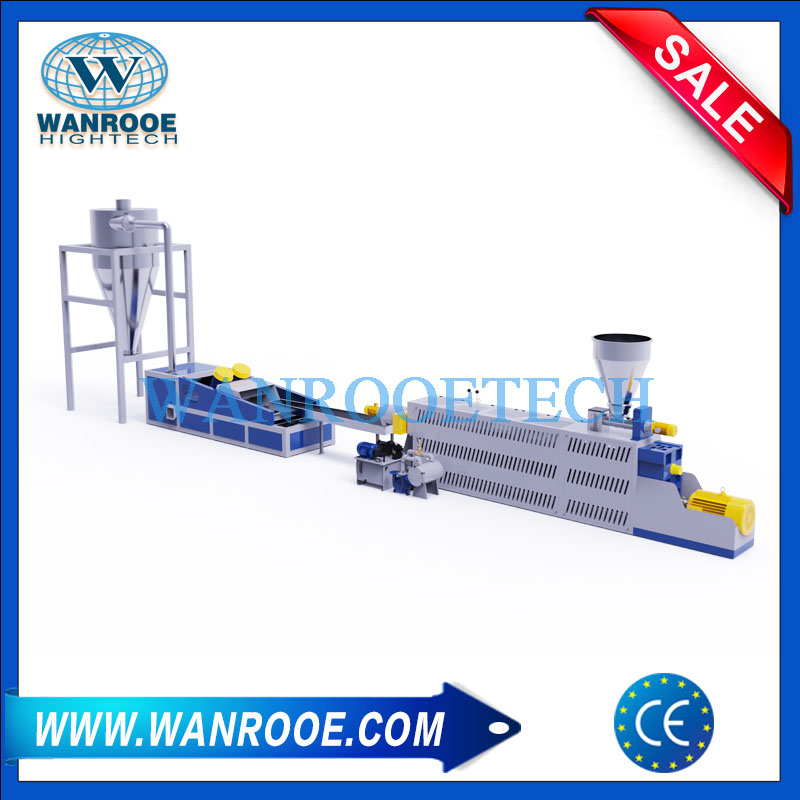

Waste WEEE Plastic Shell Recycling ABS Granulator Machine

Applications:
The single stage regrind pelletizing production line is ideal equipment for plastic granulator, especially for PP, PE film scrap, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags solid recovery of the broken material recycling and pelletizing. The production line has a novel design, reasonable structure, stable operation, low noise, low power consumption and high-yield advantage.

  • Product Description
  • Technical Parameters
  • Video

Waste WEEE Plastic Shell Recycling ABS Granulator Machine Applications:
The single stage waste WEEE plastic shell recycling ABS granulator machine is the ideal equipment for plastic granulator, especially for PP, PE film scrap, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags solid recovery of the broken material recycling and pelletizing. The production line has a novel design, reasonable structure, stable operation, low noise, low power consumption and high-yield advantage.

You can choose single stage (one extruder with one screen changer) or double stages (mother-baby two extruders with two screen changers) based on raw material clean degree & real production needs
You can choose water-ring cutting or cold-strand noodle cutting or die-face cutting way to match different raw material.

PE PP BOPP HDPE LDPE LLDPE Single Stage Recycled Grinded Material Pelletizing Machine

Waste WEEE Plastic Shell Recycling ABS Granulator Machine Process flow
Screw feeder ( OPTIONAL)→ Force feeder→Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Waste WEEE Plastic Shell Recycling ABS Granulator Machine Components:

PE PP BOPP HDPE LDPE LLDPE Single Stage Recycled Grinded Material Pelletizing Machine

Detailed description of each item:
1. Screw Feeder: Convey plastic scraps into the main machine.
2. Force feeder: Feed the material to the extruder with a designed speed, the speed can be adjusted.
3. Extruding system: plasticizing material and exhausting gas.
4. High-speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5. Water ring pelletizing machine: cutting pellets in water.
6. Water tank: cooling pellets.
7. Dewater machine: make pellets dry.
8. Vibration sieve: remove bad pellet and keep good pellet.
9. Air Blower: convey good pellets into the silo.
10. Storage silo: keep pellet.

Waste WEEE Plastic Shell Recycling ABS Granulator Machine Features:
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape.

Leave a Reply

Your email address will not be published.

Specification Screw Diamm L/D Capacitykg/h
PNHS-65D 65 28-33 60-80
PNHS-90D 90 28-33 80-120
PNHS-100D 100 28-33 100-180
PNHS-120D 120 25-33 200-300
PNHS-150D 150 25-33 300-500
PNHS-200D 200 25-33 500-800
